Aluminum Louver
SOHOME
SOHOME20260922
SOHOME Exterior Aluminum Louvers are designed for modern residential, commercial and architectural applications where ventilation, sun shading, privacy and exterior aesthetics need to work together.
Manufactured from durable aluminum profiles, the louver system can be customized in blade size, blade spacing, angle, orientation, panel dimensions and color to match different building designs and performance requirements.
From villa facades and balconies to commercial buildings, equipment areas and ventilation openings, SOHOME provides customized aluminum louver solutions based on project dimensions and application requirements.
Blade spacing is one of the most important factors affecting the appearance, ventilation, sunlight control and privacy of a louver system.
SOHOME aluminum louvers can be designed with different spacing according to the application:
Blade Spacing | Typical Application |
|---|---|
40–60 mm | Higher privacy, dense screening and ventilation openings |
60–80 mm | Balanced ventilation and visual screening |
80–120 mm | General architectural louvers and facade applications |
120–150 mm | Sun shading and larger facade designs |
150–200+ mm | Large architectural louvers and open facade designs |
Custom spacing is available according to the selected blade profile, panel size, wind requirements and project design.
Fixed louvers use a permanent blade angle and are suitable for applications where consistent shading, ventilation or visual screening is required.
They are commonly used for:
Building facades
Villa windows
Balconies
Equipment areas
Service areas
Ventilation openings
Architectural screens
The fixed design has no moving mechanism, making it a practical choice for long-term exterior applications.
Adjustable louvers allow the blade angle to be changed according to sunlight, airflow and privacy requirements.
They can be manually operated or designed with a suitable control mechanism depending on the project.
Adjustable systems are particularly suitable when the building requires different levels of sun shading and ventilation throughout the day. Fixed and adjustable systems are both common architectural approaches.

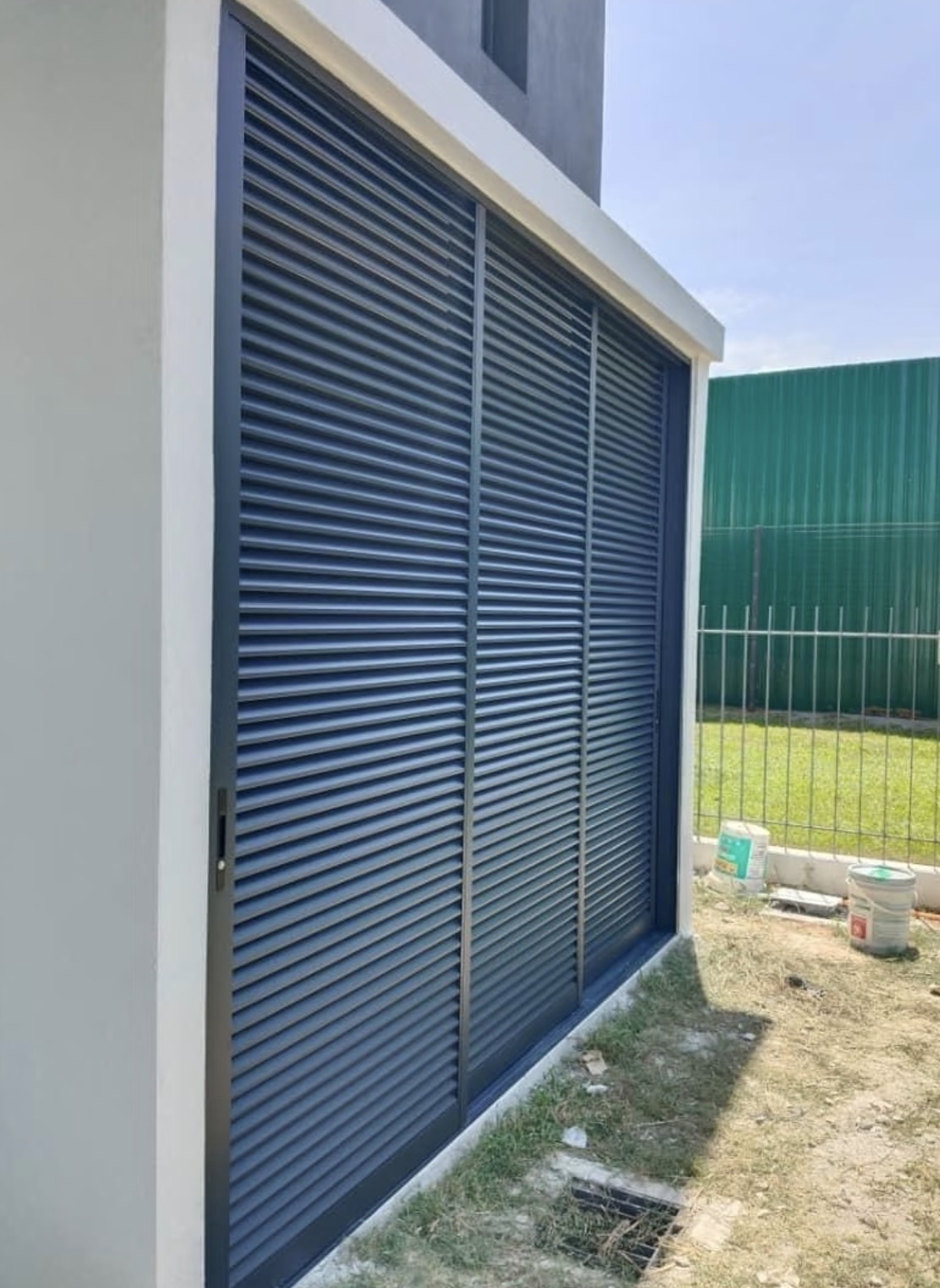

SOHOME aluminum louvers can be configured in horizontal or vertical arrangements.
Horizontal blades are commonly used for:
Window shading
Facade sun protection
Balconies
Terraces
Villa exteriors
Commercial buildings
They are particularly useful where the main objective is to control higher-angle sunlight.
Vertical blades can be used for:
East- and west-facing facades
Privacy screens
Balcony screening
Decorative facade elements
Large curtain wall areas
Vertical fins can provide better control of low-angle sunlight from the morning and afternoon, depending on the building orientation.
Aluminum louvers can be used around windows, balconies, terraces and exterior walls to provide:
Sun Shading + Privacy + Ventilation + Modern Appearance
They can be matched with SOHOME aluminum windows and doors to create a consistent architectural design.
For offices, hotels, shopping centers and other commercial buildings, louvers can be integrated into facades and curtain wall systems as architectural shading and screening elements.

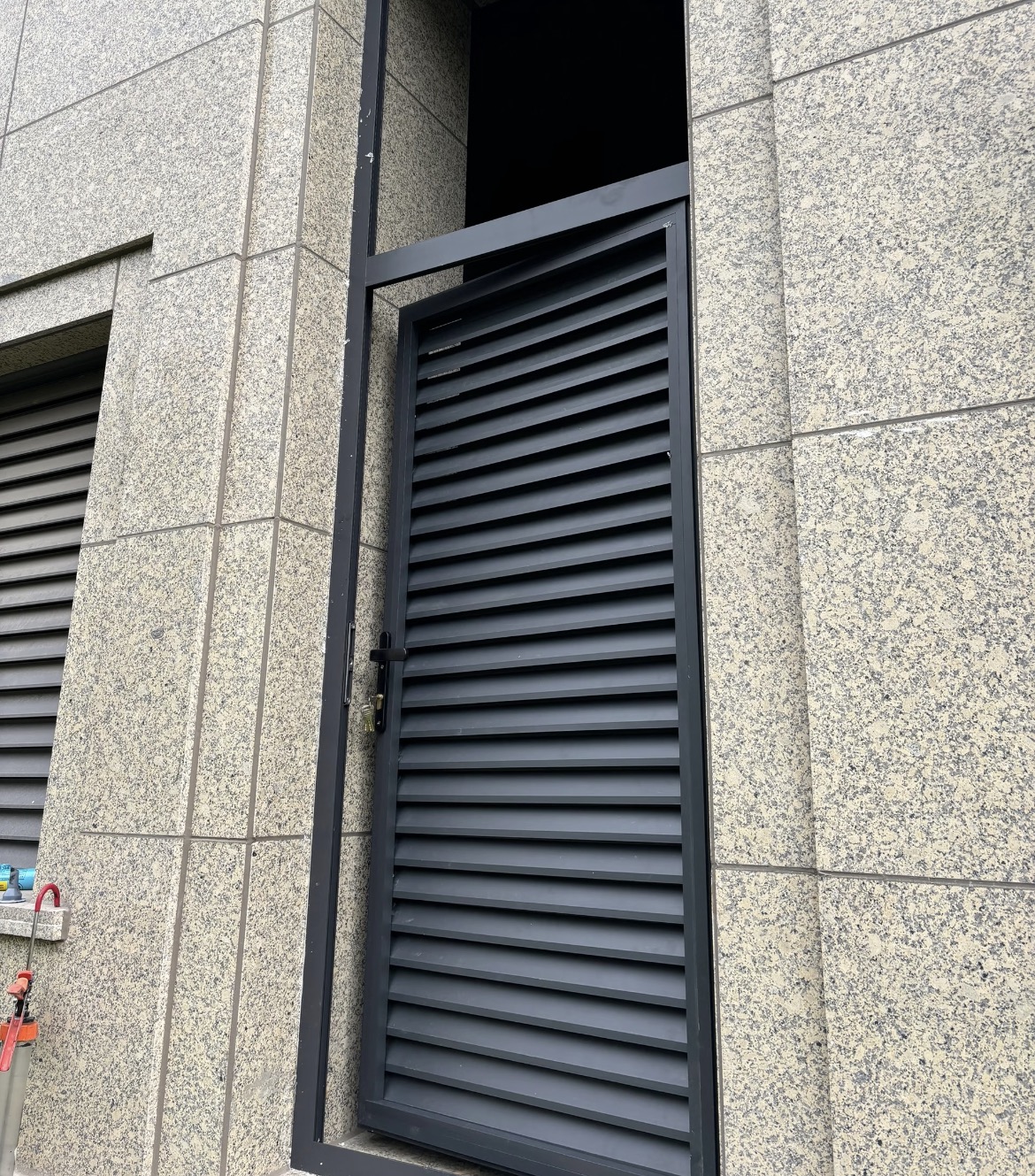

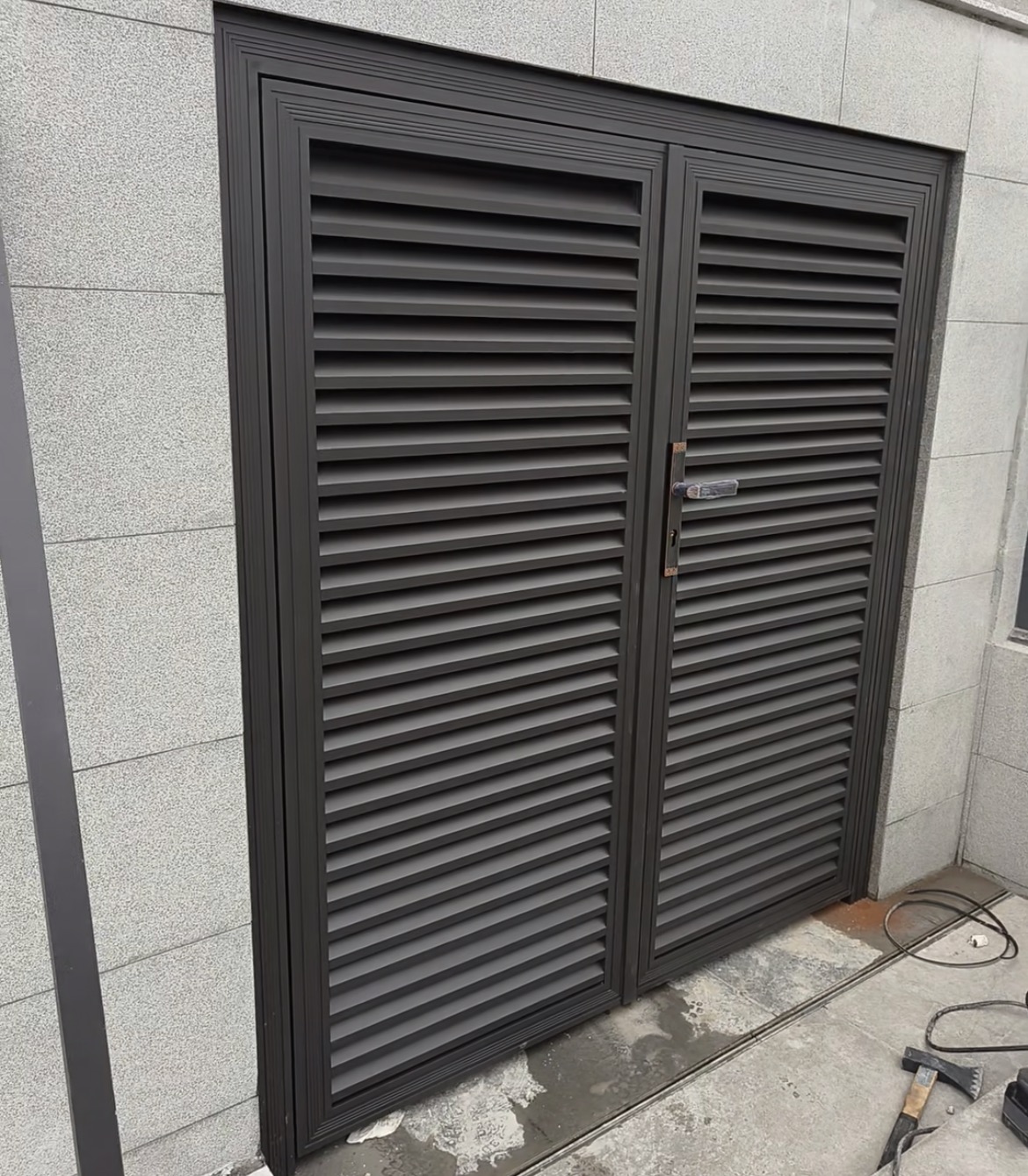

For plant rooms, utility rooms, mechanical areas and other spaces requiring airflow, ventilation louvers can allow air movement while providing protection and visual screening.
For these applications, the important parameters are not simply the blade spacing but also free area, pressure drop, rain protection and airflow requirements. Some ventilation louver systems are specifically tested for airflow and weather performance.
Closer blade spacing can create a denser visual screen, while wider spacing produces a more open appearance.
This allows the same aluminum louver concept to be adapted for different levels of:
Privacy
Daylight
Airflow
Exterior visibility
Architectural appearance
For large building facades, blade depth, spacing and angle should be selected according to the building orientation and required solar control rather than appearance alone.
SOHOME can develop aluminum louver solutions according to project requirements.
Different blade widths
Different blade depths
Flat blades
Box blades
Aerofoil-style blades
Fixed blades
Adjustable blades
Close spacing
Medium spacing
Open spacing
Custom spacing
Horizontal
Vertical
Angled configuration
Window-mounted
Wall-mounted
Facade-mounted
Balcony screening
Curtain wall integration
Standalone louver panels
Powder coating
Anodized finish
Wood-effect finish
Custom RAL colors
For regions such as the Middle East, Africa and Australia, aluminum louvers can be used as external solar-shading elements to reduce direct sunlight and improve facade comfort.
For tropical and coastal environments, louvers can combine ventilation with exterior screening while allowing airflow around suitable openings.
For coastal projects, the aluminum profile, coating system and fixing components should be selected according to the local environmental conditions and corrosion requirements.

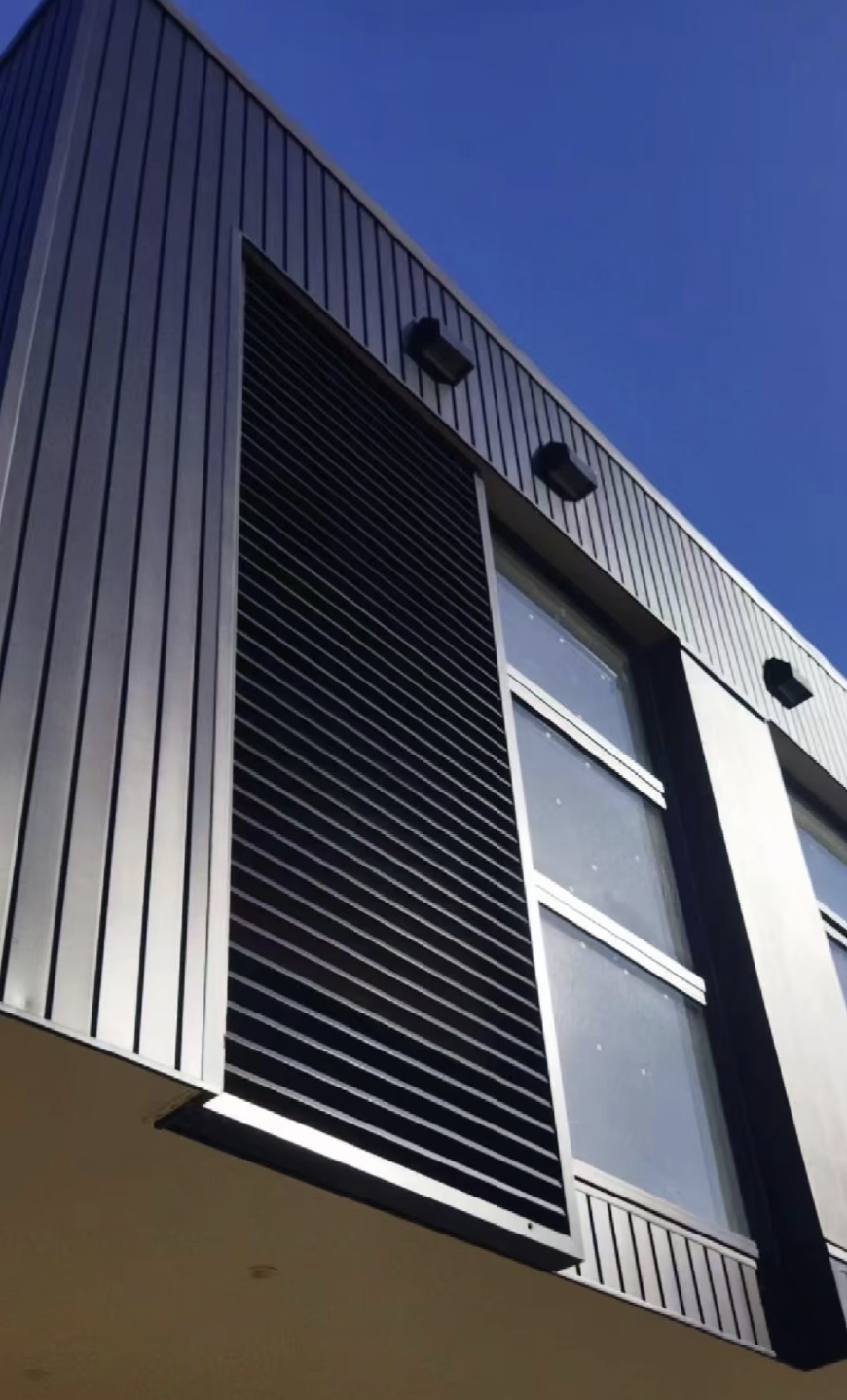

Louvers can also be used as architectural shading, privacy screens and facade elements for residential and commercial buildings.
Custom Design
Designed according to project drawings, dimensions and architectural requirements.
Flexible Spacing
Blade spacing can be adjusted according to ventilation, privacy, shading and visual requirements.
Multiple Configurations
Fixed, adjustable, horizontal and vertical solutions are available.
Durable Aluminum Construction
Suitable for long-term residential and commercial exterior applications.
Architectural Integration
Can be coordinated with aluminum windows, doors, curtain walls and other facade systems.
Factory Customization
SOHOME can provide customized aluminum louver solutions based on project requirements.
